100% Original SAMSUNG 15A discharge INR18650-30Q 3.7V 3000mAh
Rechargeable Li-ion Battery for high rate power tools with max 15Ah
discharge rate...
Application: Submersible booster, Illuminate Devices, Miner La, Search Light, Electric Toys, RC
Models, Model Aircraft, Backup Power, Hand Electric Tools, Golf cart, E-bike, Swepping robot, Power
tool,E-scooter, Drones, military products etc.
Specification:
| NO | Item | Specification |
| 1 | Nominal discharge capacity | 3,000mAh |
| Charge: 1.50A, 4.20V,CCCV 150mA cut-off, |
| Discharge: 0.2C, 2.5V discharge cut-off |
| 2 | Nominal voltage | 3.6V |
| 3 | Standard charge CCCV, | 1.50A, 4.20 ± 0.05 V, 150mA cut-off |
| 4 | Rapid charge CCCV | 4A, 4.20 ± 0.05 V, 100mA cut-off |
| 5 | Charging time | Standard charge : 180min / 150mA cut-off |
| Rapid charge: 70min (at 25℃) / 100mA cut-off |
| 6 | Max. continuous discharge(Continuous) | 15A(at 25℃), 60% at 250 cycle |
| 7 | Discharge cut-off voltage | End of discharge 2.5V |
| 8 | Cell weight | 48.0g max |
| 9 | Cell dimension | Height : 64.85 ± 0.15mm |
| Diameter : 18.33 ± 0.07mm |
| 10 | Operating teerature(surface teerature) | Charge : 0 to 50℃ |
| (recommended recharge release < 45℃) |
| Discharge: -20 to 75℃ |
| (recommended re-discharge release < 60℃) |
| 11 | Storage teerature(Recovery 90% after storage) | 1.5 year -30~25℃(1*) |
| 3 months -30~45℃(1*) |
| 1 month -30~60℃(1*) |
Note (1): If the cell is kept as ex-factory status (50±5% SOC,
25℃),
the capacity recovery rate is more than 90% of 10A discharge
capacity
100% is 2,900mAh at 25℃ with SOC 100% after formation.
Teerature dependence of charge capacity:
Capacity coarison at each teerature, measured with discharge
constant current 10A and 2.5V cut-off
after the standard charge is as follows.
| | Charge teerature | Discharge teerature |
| 0℃ | 5℃ | 25℃ | 45℃ | 50℃ | 25℃ |
| Relative capacity | 80% | 90% | 100% | 95% | 95% | |
More pic of the INR8650-30Q

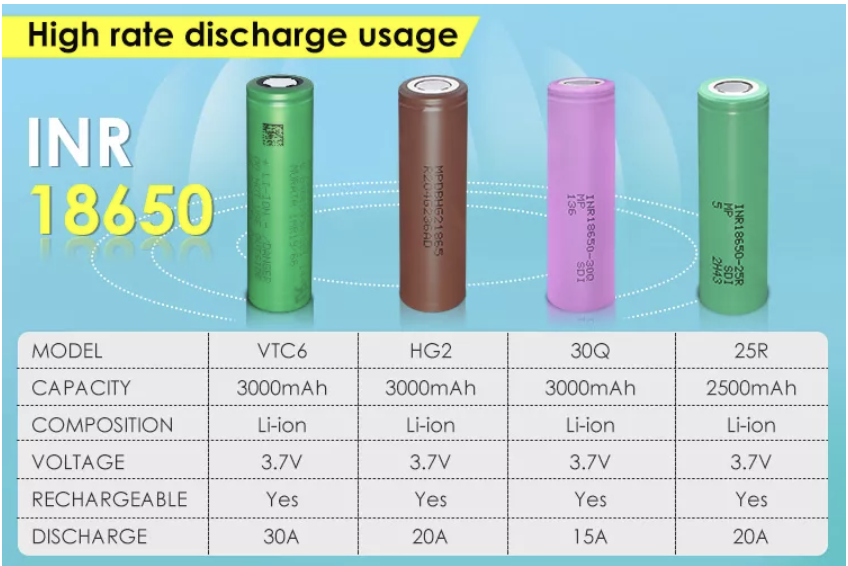

High rate dicharge models coarison:
Packing Info.
Color box /Blister box
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 18pcs/blister/ctn
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10
days around; over 500k pcs, 15 days around.
Garrantee:
Samsung SDI will be responsible for replacing the cell against
defects or poor workmanship for 18months from the
date of shipping. Any other problem caused by malfunction of the
equipment or mix-use of the cell is not under this warranty.
The warranty set forth in proper using and handling conditions
described above and excludes in the case of a defect which
is not related to manufacturing of the cell.
Related Iort cell list:
| BRAND | size/capacity/rate | Colors | Rate |
| 18650系列 | PVC tube | continue dicharge |
| SAMSUNG | 18650-22PM 10A/5C | purple | mid-rate cell |
| 18650-26JM 2C | pink purple | capacity cell |
| 18650-26HM 2C | pink purple | capacity cell |
| 18650-29ET 10A/3.5C | blue | mid-rate cell |
| 18650-35ET 10A/3C | purple | mid-rate cell |
| 18650-25RM 20A/8C | green | high rate cell |
| 18650-30Q 15A | purple | high rate cell |
| MP | B4L-2600mAh | light grey | capacity cell |
| MF1-2200mAh 10A/5C | purple | mid-rate cell |
| F1L-3350mAh | purple | capacity cell |
| M26-2600mAh 10A/3.9C | purple | mid-rate cell |
| MG1-2600mAh 10A/3.4C | dark red | mid-rate cell |
| MH1-3200mAh 10A/3C | blue | mid-rate cell |
| MJ1-3500mAh 10A/3C | green | mid-rate cell |
| HB3-1500mAh 22A/14C | grey | high rate cell |
| SANYO | 16650ZTA-2500mAh | purple | capacity cell |
| 18650AA-2200mAh | red | mid-rate cell |
| 18650NSX-2600mAh 20A/8C | red | high rate cell |
| 18650ZY-2600mAh | red | capacity cell |
| 18650ZTA-3000mAh | red | capacity cell |
| 18650BF-3400mAh | red | capacity cell |
| 18650GA-3500mAh | red | mid-rate cell |
| PANASONIC | 18650PF-2900mAh 10A | green | mid-rate cell |
| 18650BD-3200mAh-8A 中性 | grey | mid-rate cell |
| 18650BD-3200mAh-8A 印字 | grey | mid-rate cell |
| 18650BM-3200mAh-3.87A | green | capacity cell |
| 18500A-2030mAh | green | mid-rate cell |
| 18650B-3400mAh 4.87A | green | capacity cell |
| SONY | 索尼VC3-1900mAh 18A/10C | green | high rate cell |
| 18650VT3-1600mAh 20A/12.5C | green | high rate cell |
| Bostoon | Bostoon 5300 | green | mid-rate cell |
For more info. Please feel free to contact me in any way below,
hope 12years of battery area working experance can help you out.
